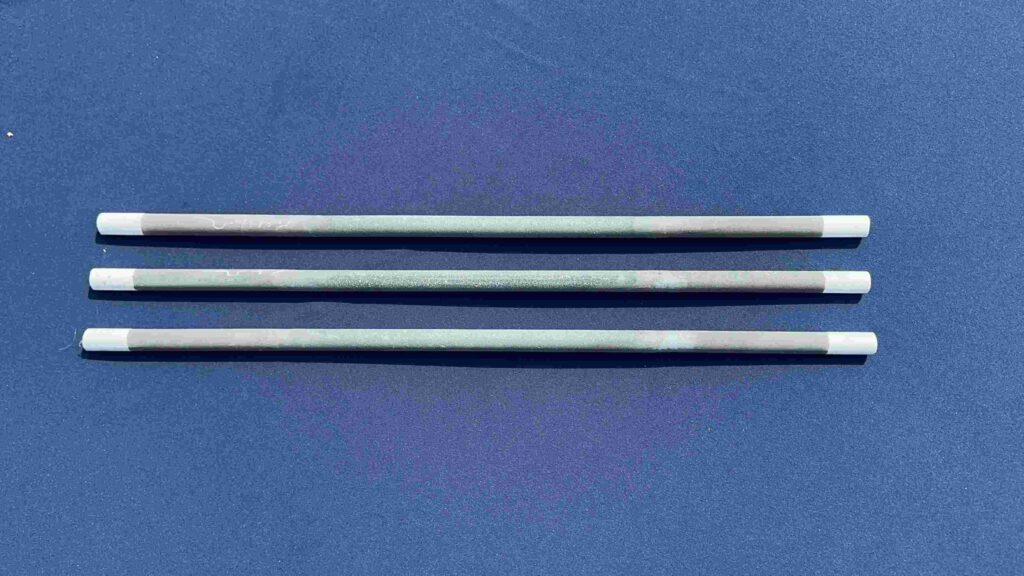

Silicon carbide rod heaters are electric heating elements made from high-grade green silicon carbide. Compared with metal heaters, these non-metallic parts handle very high heat, stand up to chemical attack, and last a long time. Many plants in ceramics, glass, metallurgy, and powder metallurgy count on them for steady heat work. Keeping silicon heating elements in service longer cuts lost time and helps daily output, so long life matters in real production.
Looking for high-quality SiC heating elements? Explore Songshan's product range here

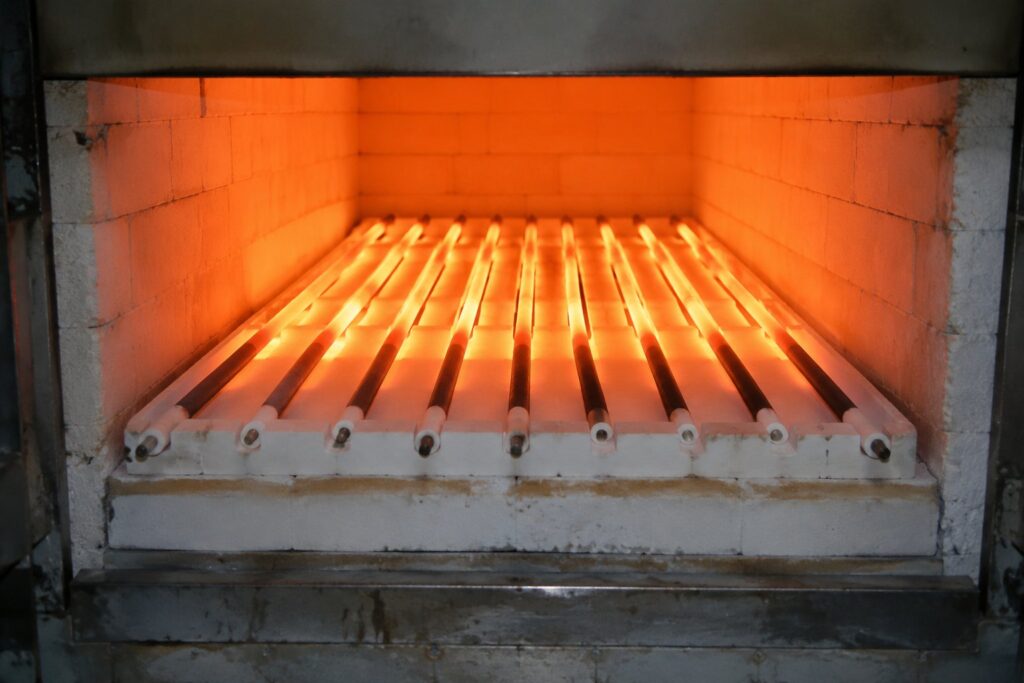

Silicon carbide rod heaters gain strength from a high-temperature crystal step. Songshan’s proprietary process minimizes deformation under thermal load and helps the element maintain structural integrity at temperatures up to 1600 °C. Good heat flow, low pore count, and tight resistance control let the parts give even heat along the full hot zone.
A silicon heating element turns electric power into heat by resistance. Current passes through the SiC body and warms the hot zone evenly. Songshan silicon carbide heating elements use a cold-end design that lowers the chance of hot spots and cuts stress on furnace walls.
Surface load (W/cm²) is the main item that sets service life. It is the power per unit area of the hot zone and must match the furnace temperature. Higher loads increase the element’s operating temperature and accelerate wear. Because SiC is a ceramic material, it can break if struck or bent during handling or installation. Temperature limits also matter. Above 1627 °C, the thin SiO₂ layer on the surface starts to fail, and oxidation then moves faster.
Over months of use, the resistance slowly climbs. This rise is called aging. Hotter runs and wrong load settings make the rise quicker. Thermal growth and poor fit also cause trouble. Holes in the furnace wall must be 1.5 times the part diameter so the rod can expand freely. Fast voltage jumps at start-up can crack the part right away.
Some chemicals attack the material. Alkali oxides react with SiC near 1300 °C and form soft silicate layers that wear the surface. Molten cobalt or nickel also eats into the part and shortens its life.
Improper furnace operation can accelerate damage. Surface load above the set value can cause runaway heat. Quick heat-up or cool-down adds stress. Skipping the dry-out step on a new or idle furnace can start early oxidation at the cold ends.

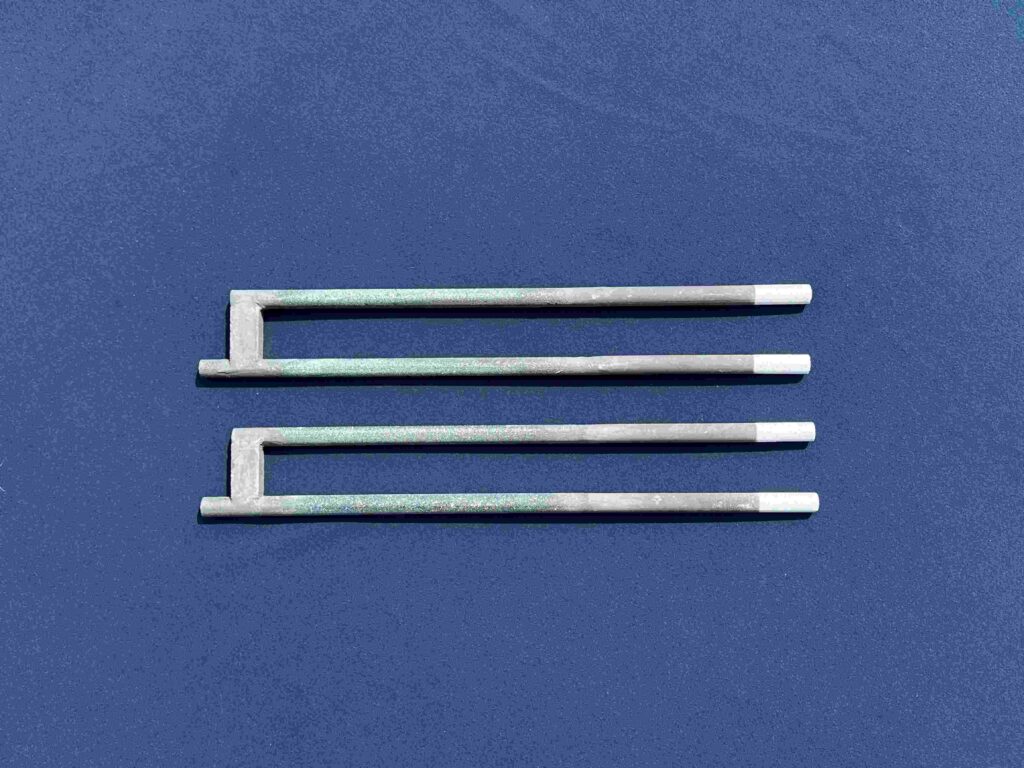

Pick the right part by matching furnace style, needed temperature, and safe surface load. Songshan lists outer diameter, hot-zone length, and resistance value for each model so users can stay inside safe limits.
To slow chemical attack, run the furnace in a clean or inert gas when the process allows. Keep ammonia, CO₂, and halogen gases away from the parts. In some cases, a protection tube can be placed around the SIC heating element.
Check resistance on a set schedule. Rising values point to surface oxidation. Swap parts when readings move outside the stated band instead of waiting for a fixed date. Keep furnace conditions inside the rated range so the parts see only normal stress.
Turn off the power, let the furnace cool, and remove the broken part without hitting the others. Fit a new Songshan silicon carbide heating element that matches the old one in size and resistance.
Record resistance at set intervals. A steady climb usually means the surface is oxidizing. Plan a replacement before the value drifts too far and causes a shutdown.
Loosen the braid strap, pull out the old ceramic spacers, slide the new part into place, and check that it sits straight. Raise voltage slowly on restart so the part warms evenly and avoids thermal shock.
New or long-idle furnaces need a slow dry cycle at 100–200 °C before full heat. This step keeps moisture from causing early oxidation at the cold ends.
Simple meters for voltage and current show the load on each part. Temperature controllers hold the hot zone steady. Recording systems track changes over weeks and flag any drift early.
Long service from silicon carbide rod heaters comes from correct choice, careful fit, and steady running conditions. Songshan silicon carbide heating elements give strong high-temperature performance, resist chemical attack, and keep power use steady. Good handling and regular checks let these parts deliver heat for years and help plants cut both downtime and cost.
A: Songshan silicon carbide heating elements go through a high-temperature crystal step. A thin protective film forms on the hot zone and slows oxidation, so the part lasts longer.
A: Surface load changes with furnace temperature. At 1400 °C, the hot zone should stay at or below 5 W/cm².
A: Cool the furnace, take out the broken part without touching the rest, and fit a new Songshan silicon carbide heating element that matches the old size and resistance.
A: Slow oxidation at high temperature makes resistance rise bit by bit. Watching the resistance rise helps users plan a replacement before failure.
A: Songshan controls the cold-end manufacturing process, maintains a stable recrystallization process, and inspects each batch in accordance with ISO 9001 standards. These steps give steady quality and longer life in use.
