ED（rod） type sic heating elements

1、What is ED type sic heating elements ?

RR Starbar (also known as ED/RR type) is a straight rod‑shaped resistive silicon carbide heating element made mainly of green silicon carbide. It is available in rod or tubular form according to diameter, featuring a central hot zone and two cold ends. It comes in two types: one‑piece with silicon‑impregnated cold ends and three‑piece LRE type with furnace‑welded low‑resistance cold ends. The ends are aluminum‑metallized for easy electrical connection. Manufactured through a multi‑stage process, it forms a protective anti‑oxidation glassy oxide layer on the surface, with a maximum operating temperature of 1450°C and long service life.

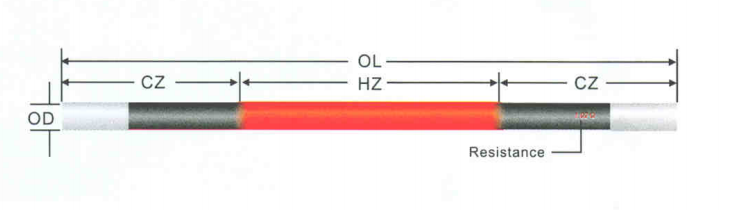

2、Dimension marks of element

Type:ED

Cold end length:CZ, mm

Outer diameter:OD, mm

Overall length:OL, mm

Hot zone length:HZ, mm

3、The advantages of ED(RR) type SiC heating elements

• High working temperature up to 1450℃, stable in oxidizing atmospheres.
• Excellent thermal shock resistance, allowing rapid heating and cooling without cracking.
• Low resistance on cold ends, high thermal efficiency, and energy-saving performance.
• Good chemical stability, oxidation and corrosion resistance at high temperatures.
• Simple structure, easy installation, replacement and maintenance.

4、Installation and operation of elements

• In order to keep furnace temperature and the charges uniform of each element, before installation, resistance distribution must be carried out.The resistance deviation among elements of each set should be below ±5%.
• As the element is very brittle, be careful while install and maintain to avoid any damage.
• When start to operate the furnace, raise voltage slowly and gradually, never give full load at one time, otherwise, the heating element will be damaged by over current impulse.
• To use the elements. vou should prepare the adjustable transformer or SC controller, voltage meter current meter and auto-control temperature meter etc. During the working, the voltage should be increased to keep the furnace normal temperature because the resistance value wil go up gradually caused by the oxidation of element. When the voltage get to the top limit of the transformer and the temperature is still low than the requirement, the furnace should be stopped, change the way of wire connection and then continue work.
• In the course of long term operation, if any individual heating element is damaged owing to certain reasons, which should be changed, you should replace it with proper one whose resistance value corresponds to that of the old one, never use a new heating element random. If the heating element is much damaged or its resistance value increases too much and cannot reach the furnace temperature, it is better to replace all the heating elements with new ones.Test and mark theresistance value of the old elements having been replaced (with voltmeter and ammeter) and distribute them in low temperature area.
• Before use the new furnace or the furnace that has not been used for a long time, they must be dried. When drying them, it is better to use old elements or other heat source.

5、Packaging Information

• Each silicon carbide rod is individually packaged in protective materials to prevent damage during transit.
• Custom packaging options are available, including bulk packaging for larger orders.
• Standard packaging includes sturdy cardboard boxes with foam inserts to ensure safe delivery.
