U shape MoSi2 heating elements

What is u shape mosi2 heating element?

U-shaped MoSi₂ heating elements are high-temperature heating components named after their U shape. They are usually installed vertically with the U‑bend downward, consisting of two cold ends (twice the   of the hot section) and a welded U‑shaped hot zone. The cold ends are aluminum‑metallized for low‑resistance electrical connection.

Available in 1700℃ and 1850℃ grades, these elements are made of dense MoSi₂ cermet material. They form a self‑renewing protective oxide layer at high temperatures for excellent oxidation resistance, and show slight ductility at around 1200℃.

Applications

Heating Elements: Ideal for electric heating elements in a variety of industries, including semiconductors and industrial machinery.

Glass Manufacturing: Perfect for use in glass melting furnaces and other high-temperature processing environments.

Other Industrial Uses: Can also be used in nuclear reactors, aerospace, and high-performance electronics.

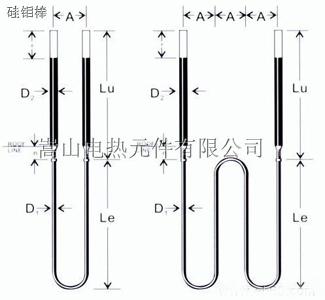

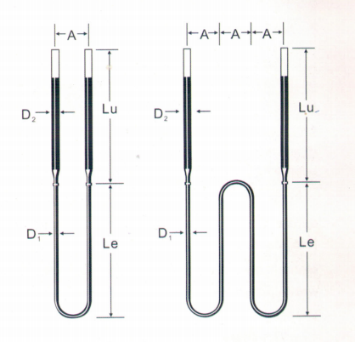

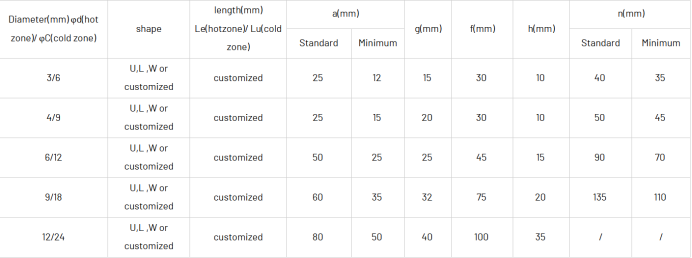

Dimension marks of element

材料等级Material Grade:1700,1800

直径Diameter D./D2, mm/mm

热端长度Hot zone length: Le.mm-

冷端长度Cold end length: Lu.mm*

距Shank Spacing: A.mm

Packaging Information

●Each silicon carbide rod is individually packaged in protective materials to prevent damage during transit.

●Custom packaging options are available, including bulk packaging for larger orders.

●Standard packaging includes sturdy cardboard boxes with foam inserts to ensure safe delivery.
